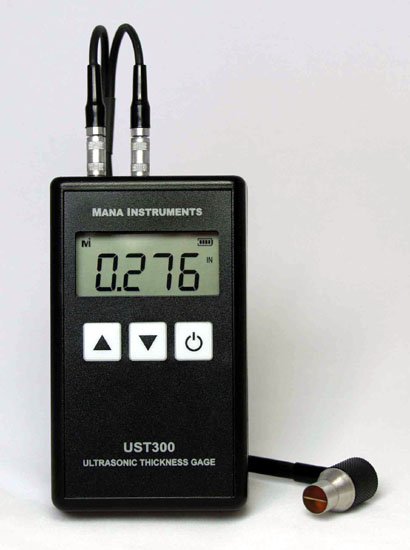

The UST300 is a hand held microprocessor controlled thickness gauge specifically designed for measuring the thickness of metallic and non-metallic materials e.g. steel, aluminium, titanium, copper, plastic, ceramics, glass, etc.

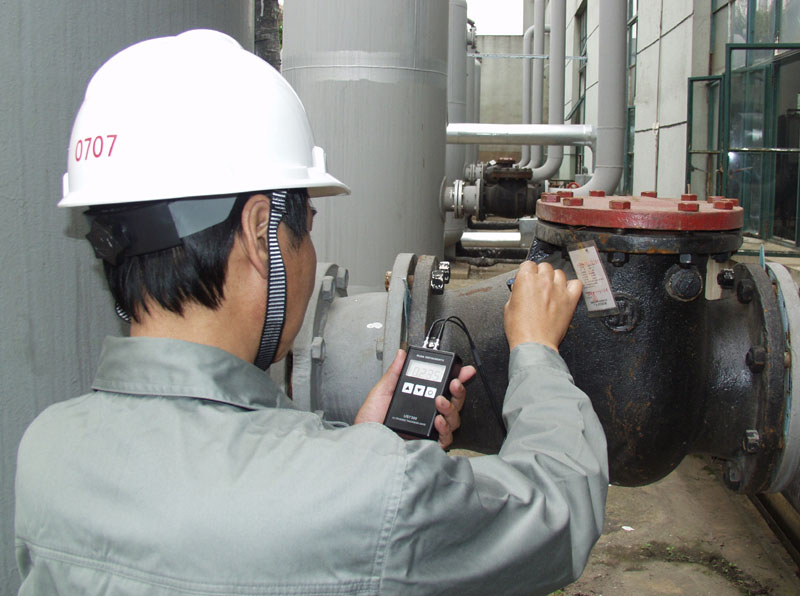

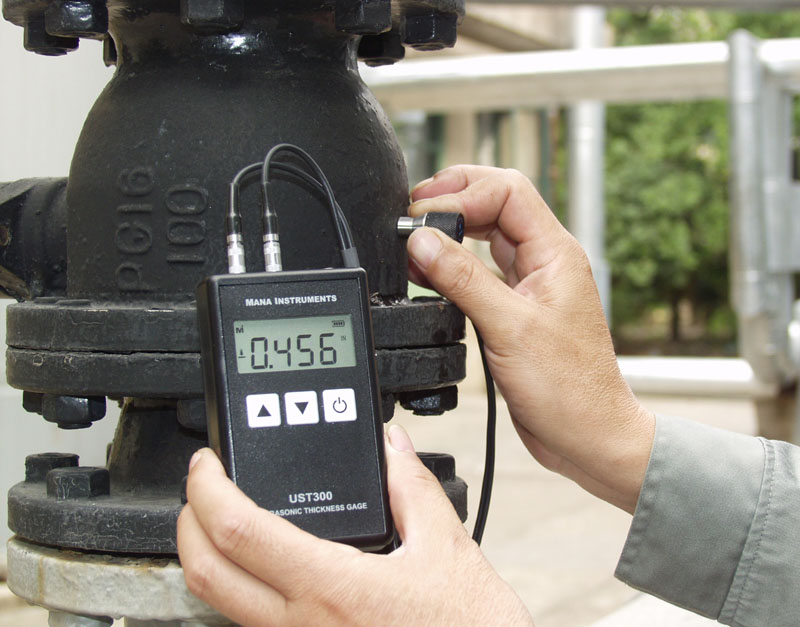

With uses in many areas of industry the UST300 can perform precise measurements of various types of raw materials, component parts, and assembled machinery. It is especially applicable to the measurement of remaining wall thickness on tubes, pipes, pressure vessels, and other parts subject to wall thickness loss due to corrosion or erosion.
The UST300 is easy to use, after a simple calibration to a known thickness or sound velocity, the gauge will give accurate reading in millimeters or inch.
SPECIFICATIONS:
Thickness Measurement Rage: 0.040 to 9.999 inch (1.0 to 254.0mm)
Material Velocity Range: 0.039 to 0.393 in/us (1000 to 9999 m/s)
Display: 4-digit 0.45 inch high, Liquid Crystal Display with white LED backlight
Displayed Resolution: 0.001 inch or 0.01mm
Probe Type: 5 MHz dual element transducers. Tip diameter 0.393 inch (10mm),
Power Supply: One 9 Volt alkaline battery
Low Battery indicator: Continuously indicates battery status
Dimensions (L x W x D): 4.33" (110 mm) x 2.56" (65 mm) x 1.10" (28 mm) at thickest part of case

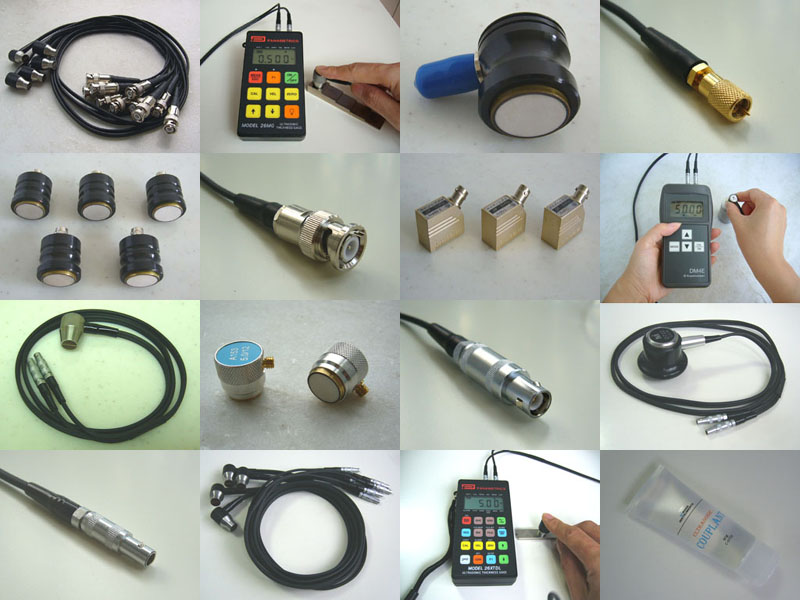

Included in the delivery
1. UST300 Gauge
2. D755 Dual Element Probe ( 5MHz )
3. Couplant ( 3oz. )
4. Operating Manual
5. 9 Volt alkaline battery ( PP3 )
6. Plastic Carrying Case
Buyer pays £22 for shipping and handing by EMS ( worldwide Express Mail Service )
